問下AV野 - 請教Room EQ Curve

[Alzard]

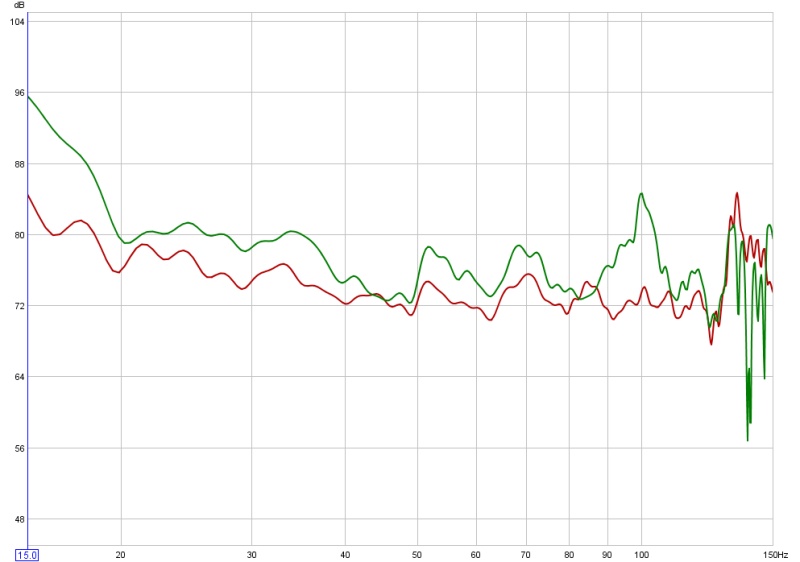

想請教下條curve係咪唔太差﹐同埋Audyssey個auto set都有D用?


Green: No EQ
Red: MultiEQ XT + Dynamic EQ

[luckybeanbean]

looks okay, but the 100hz has peak.
do you have a curve without eq? thanks

[Alzard]

looks okay, but the 100hz has peak.
do you have a curve without eq? thanks

I turned off EQ, which is green in colour in the graph.

[Raymond Wan]

想請教下條curve係咪唔太差﹐同埋Audyssey個auto set都有D用?


Green: No EQ
Red: MultiEQ XT + Dynamic EQ

You should try to set and control the "up" and "down" to within 3dB --> relatively flat within 20Hz to 200Hz.

[Alzard]

想請教下條curve係咪唔太差﹐同埋Audyssey個auto set都有D用?


Green: No EQ
Red: MultiEQ XT + Dynamic EQ

You should try to set and control the "up" and "down" to within 3dB --> relatively flat within 20Hz to 200Hz.

I would be a bit difficult to me as I only rely on the AMP's EQ.
Raymond, do you think the curve "acceptable"? As I don't have much space to move the subwoofer around.

[Raymond Wan]

想請教下條curve係咪唔太差﹐同埋Audyssey個auto set都有D用?


Green: No EQ
Red: MultiEQ XT + Dynamic EQ

You should try to set and control the "up" and "down" to within 3dB --> relatively flat within 20Hz to 200Hz.

I would be a bit difficult to me as I only rely on the AMP's EQ.
Raymond, do you think the curve "acceptable"? As I don't have much space to move the subwoofer around.

The curve is surely acceptable.

However, there is room to be improved by doing fine tuning within your home.

Please try to relocate the subwoofer and re-test again.

You may find a better place for it.

I have help some brothers to just move the subwoofer a little bit with some adjustment, the results are improved significant.

Good exercise and you will be amazed on the outcome sometimes.

[Alzard]

The curve is surely acceptable.

However, there is room to be improved by doing fine tuning within your home.

Please try to relocate the subwoofer and re-test again.

You may find a better place for it.

I have help some brothers to just move the subwoofer a little bit with some adjustment, the results are improved significant.

Good exercise and you will be amazed on the outcome sometimes.

It is lucky there is no very obvious peak or trough in the curve. I will try to move a bit and see if it will sound better.

[karencho]

The curve is surely acceptable.

However, there is room to be improved by doing fine tuning within your home.

Please try to relocate the subwoofer and re-test again.

You may find a better place for it.

I have help some brothers to just move the subwoofer a little bit with some adjustment, the results are improved significant.

Good exercise and you will be amazed on the outcome sometimes.

It is lucky there is no very obvious peak or trough in the curve. I will try to move a bit and see if it will sound better.

What can we do at this moment

[Alzard]

The curve is surely acceptable.

However, there is room to be improved by doing fine tuning within your home.

Please try to relocate the subwoofer and re-test again.

You may find a better place for it.

I have help some brothers to just move the subwoofer a little bit with some adjustment, the results are improved significant.

Good exercise and you will be amazed on the outcome sometimes.

It is lucky there is no very obvious peak or trough in the curve. I will try to move a bit and see if it will sound better.

What can we do at this moment

Accept it...hahaha

[Raymond Wan]

The curve is surely acceptable.

However, there is room to be improved by doing fine tuning within your home.

Please try to relocate the subwoofer and re-test again.

You may find a better place for it.

I have help some brothers to just move the subwoofer a little bit with some adjustment, the results are improved significant.

Good exercise and you will be amazed on the outcome sometimes.

It is lucky there is no very obvious peak or trough in the curve. I will try to move a bit and see if it will sound better.

What can we do at this moment

No need for major work but minor adjustments.

Just ask Alzard to do some exercise and you sit and listen.



Since there is no serious problem within the curve just need "fine" tune for potential improvement.

[jv8803]

looks okay, but the 100hz has peak.
do you have a curve without eq? thanks

[karencho]

The curve is surely acceptable.

However, there is room to be improved by doing fine tuning within your home.

Please try to relocate the subwoofer and re-test again.

You may find a better place for it.

I have help some brothers to just move the subwoofer a little bit with some adjustment, the results are improved significant.

Good exercise and you will be amazed on the outcome sometimes.

It is lucky there is no very obvious peak or trough in the curve. I will try to move a bit and see if it will sound better.

What can we do at this moment

No need for major work but minor adjustments.

Just ask Alzard to do some exercise and you sit and listen.



Since there is no serious problem within the curve just need "fine" tune for potential improvement.

Let me sit tight and ask Alzard to do his job

[luckybeanbean]

this curve is made by AVamp eq only?

I can tell you, you will not be able to generate another curve that is as flat as this (subwoofer curve). This is many people's dream curve. Well done

[luckybeanbean]

looks okay, but the 100hz has peak.
do you have a curve without eq? thanks

[Raymond Wan]

looks okay, but the 100hz has peak.
do you have a curve without eq? thanks

During the home visit, I notice that you may have problems in some frequencies.

You may need some room treatment to enhance the situation.

The PEQ is not really improve alot as "Ringing" can be observed by moving your head for just a few inches sideway.

Sitting and standing in front or behind your sofa differ quite alot on bass response.



Do some home work to identify and improve the problematic frequencies.
